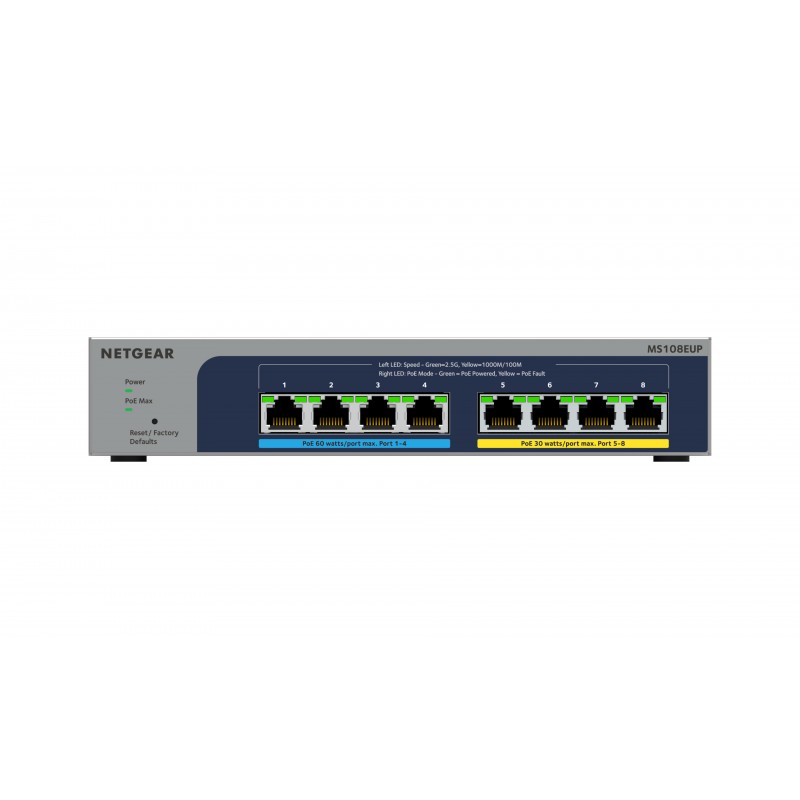

Provides 8 ports 1G/2.5G with 4 PoE+ ports and 4 Ultra60 PoE++ ports making it a perfect switch for WiFi 6 AP connectivity, IP surveillance and more.Multi-Gigabit Ethernet 8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each.PoE Support 4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.Advanced PoE Controls Manage PoE prioritization, scheduling, power limit per port, and more for simple control over all PoE-powered devices.Non-Blocking Switching 40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.Fanless Design Silent operation makes this switch perfect for noise-sensitive environments.Versatile Mounting Options Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.
| 10G support | No |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Certification | CE FCC 15 B CE/EN55032/24 CSA VCCI ACMA KC CCC BSMI |
| Copper ethernet cabling technology | 100BASE-T,1000BASE-T |
| Depth | 140 mm |
| Flow control support | Y |
| Full duplex | Y |
| Height | 40 mm |
| Housing material | Metal |
| IGMP snooping | Y |
| Jumbo frames support | Y |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address table | 16000 entries |
| Mean time between failures (MTBF) | 373644 h |
| Multicast support | Y |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3x |
| Non-operating altitude | 0 - 3000 m |
| Number of multicast groups filtered | 128 |
| Number of VLANs | 64 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 1.5 MB |
| Password protection | Y |
| Port mirroring | Y |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power source | PoE |
| Power supply included | Y |
| Quality of Service (QoS) support | Y |
| Rack mounting | No |
| Rate limiting | Y |
| Stackable | No |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Store-and-forward | Y |
| Switch layer | L2/L3 |
| Switch type | Unmanaged |
| Switching capacity | 40 Gbit/s |
| Total Power over Ethernet (PoE) budget | 230 W |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 900 g |
| Width | 210 mm |
| Jumbo frames | 12000 |
ms108eup-100eus.pdf
NETGEAR 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Plus Switch Data Sheet
